P2.6 P2.9 P3.91 P4.81 Event Rental Indoor LED Display Pantalla Outdoor Small De Wall Led Panel Stage LED Screen for Concert

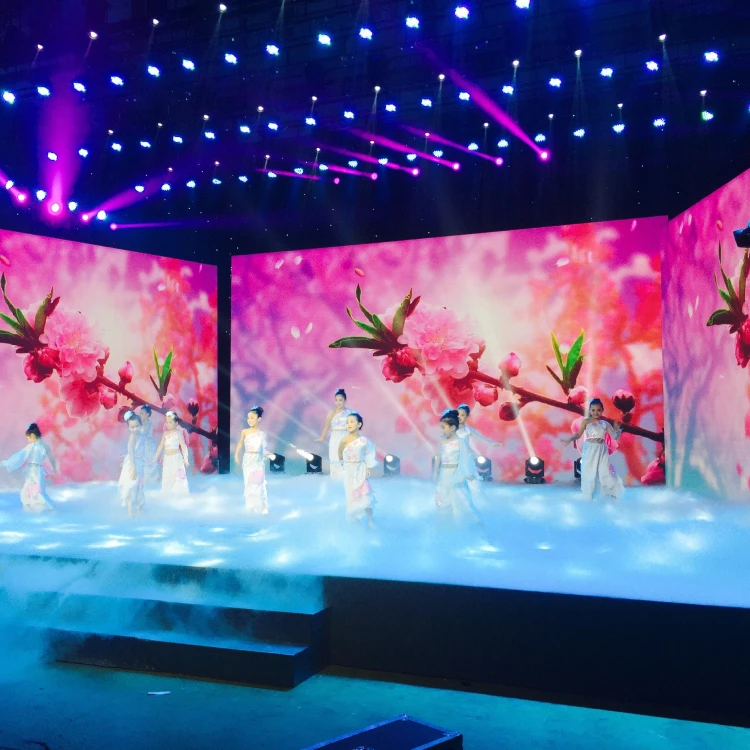

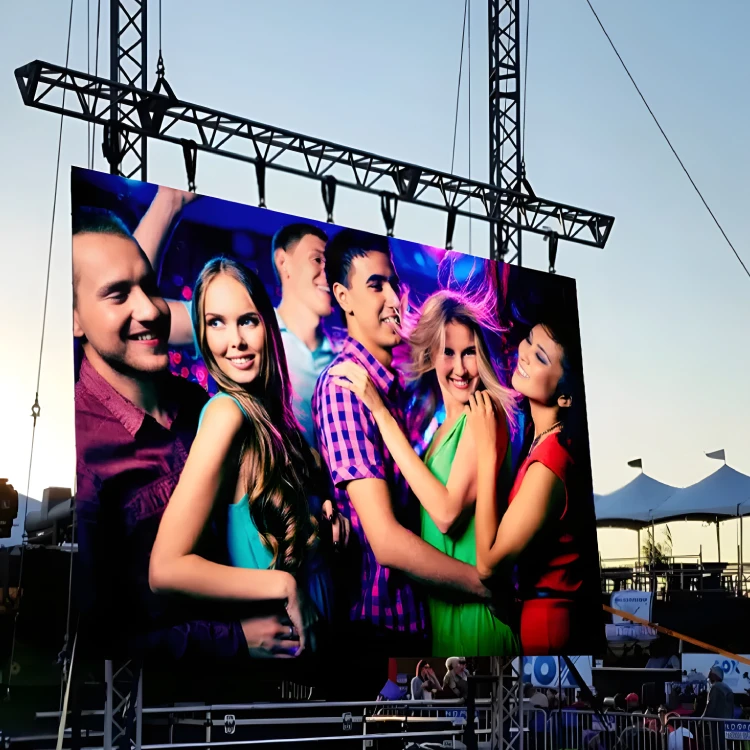

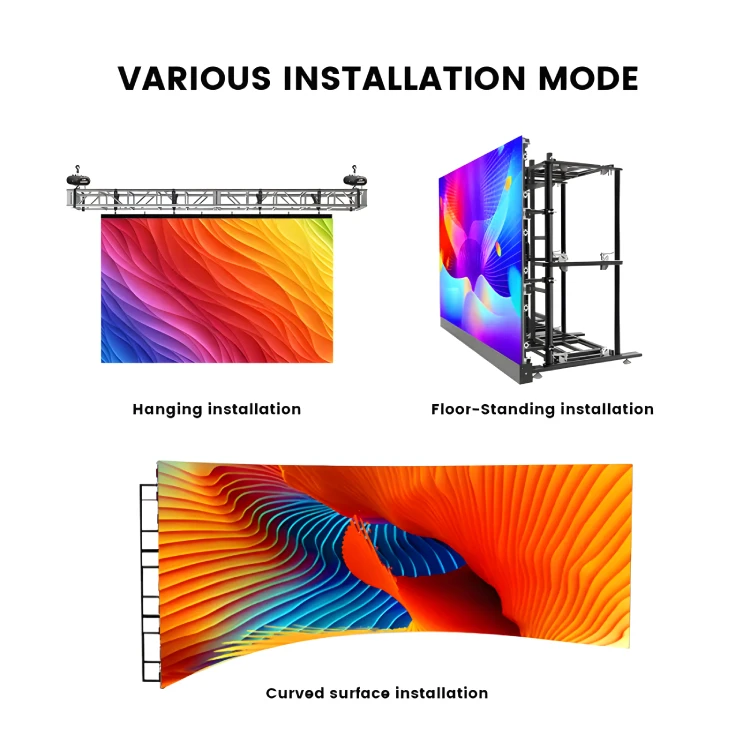

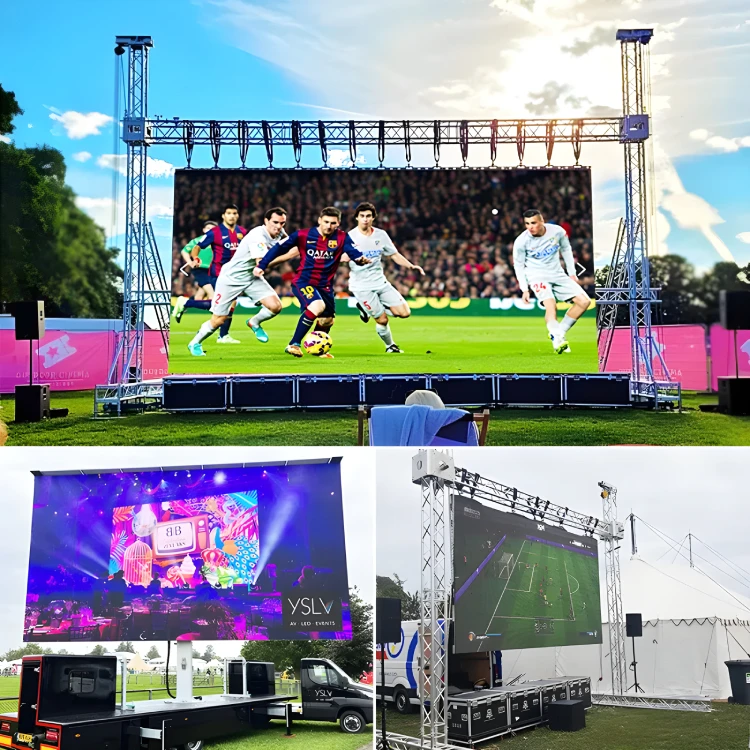

Covering indoor models such as P2.6/P2.9 and outdoor models such as P3.91/P4.81, it adopts small-pitch technology, featuring fine picture quality and precise colors. It features quick installation and disassembly, is suitable for scenarios such as stages and concerts, supports arc/right-angle splicing, has a high protection level (IP65 for outdoor models), meets the high-definition display requirements both indoors and outdoors, and creates an immersive visual experience for event sites.
- Overview
- Recommended Products
Product Description
Specification
Pixel Information |
2.976mm-outdoor |
3.91mm-outdoor |
2.604mm-outdoor |
||
LED Lamp |
SMD1415 |
SMD1921 |
SMD1415 |
||
LED Lamp Brands |
Nationstar, Sinyopto |
||||
Color Grayscale(Bit) |
12-16 |
12-16 |
12-16 |
||
Panel weight/kg |
0.58 |
0.65 |
0.58 |
||
Cabinet size (mm) |
500*500/500*1000 |
500*500/500*1000 |
500*500/500*1000 |
||
Humidity |
10%-95%RH |
10%-65%RH |
10%-95%RH |
||
Quantity of panel |
16/8 |
16/8 |
16/8 |
||
Hub connecting |
HUB75 |
HUB75 |
HUB75 |
||
Controller |
Novastar Processor |
||||
Best viewing angle |
Horizontal 170 Vertical120 |
Horizontal 170 Vertical120 |
Horizontal 170 Vertical120 |
||
Best viewing distance |
3-30M |
3-30M |
3-40M |
||
Working temperature |
-20-60℃ |
-20-60℃ |
-20-60℃ |
||
Panel current |
8A |
8A |
8A |
||
Panel power supply |
5V40A |
5V40A |
5V40A |
||
Screen power supply |
220VAC/50HZ+_10% |
220VAC/50HZ+_10% |
220VAC/50HZ+_10% |
||
IP rating |
The back IP65，The front IP65 |
The back IP65，The front IP65 |
The back IP65，The front IP65 |
||
AC input Power Maximum Value(W/㎡) |
<800W/㎡ |
<800W/㎡ |
<800W/㎡ |
||
Average power |
300W |
250W |
350W |
||
Driving mode (scan) |
1/21Scanning |
1/16Scanning |
1/24Scanning |
||
Refresh frequency(Hz) |
1920-3840HZ |
1920-3840HZ |
1920-3840HZ |
||
Display color |
4096*4096*4096 |
4096*4096*4096 |
4096*4096*4096 |
||
Brightness(nit） |
5000cd/M2 |
4000cd/M2 |
4000cd/㎡ |
||
Lifetime Typical Value(hrs) |
100000Hours |
100000Hours |
100000Hours |
||
Communication distance |
<100M |
<100M |
<100M |
||
Product packaging
Company Profile
FAQ
Q1.Can I have a sample order for the LED display?
A:Yes,we welcome sample orders to test and check quality.Both for the module or the whole screen.
Q2.What about the lead time?
A:Order less than 100 square meters lead time to take 15 working days
Q3.Do you have any MOQ limit for LED display orders?
A:Low MOQ,1 square meter or a module checking is available
Q4.How do you ship the goods and how long does it take to arrive?
A:We mostly accept FOB train terms,but we can help you order and arrange a shipping agent.It usually takes 20 30 days on the sea.a few days for customs clearance
Q5.How to proceed with an order for an LED display?
A:Firstly let us know your requirements or application.
Secondly,We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places a deposit for the formal order.
Fourthly We arrange the production.
Q6.Is it OK to print my logo on the products?
A:Yes.Please inform us formally before our production and confirm the design firstly based on our sample.
Q7:Do you offer a guarantee for the products?
A:Yes,we offer 1-5 years warranty for our products.
